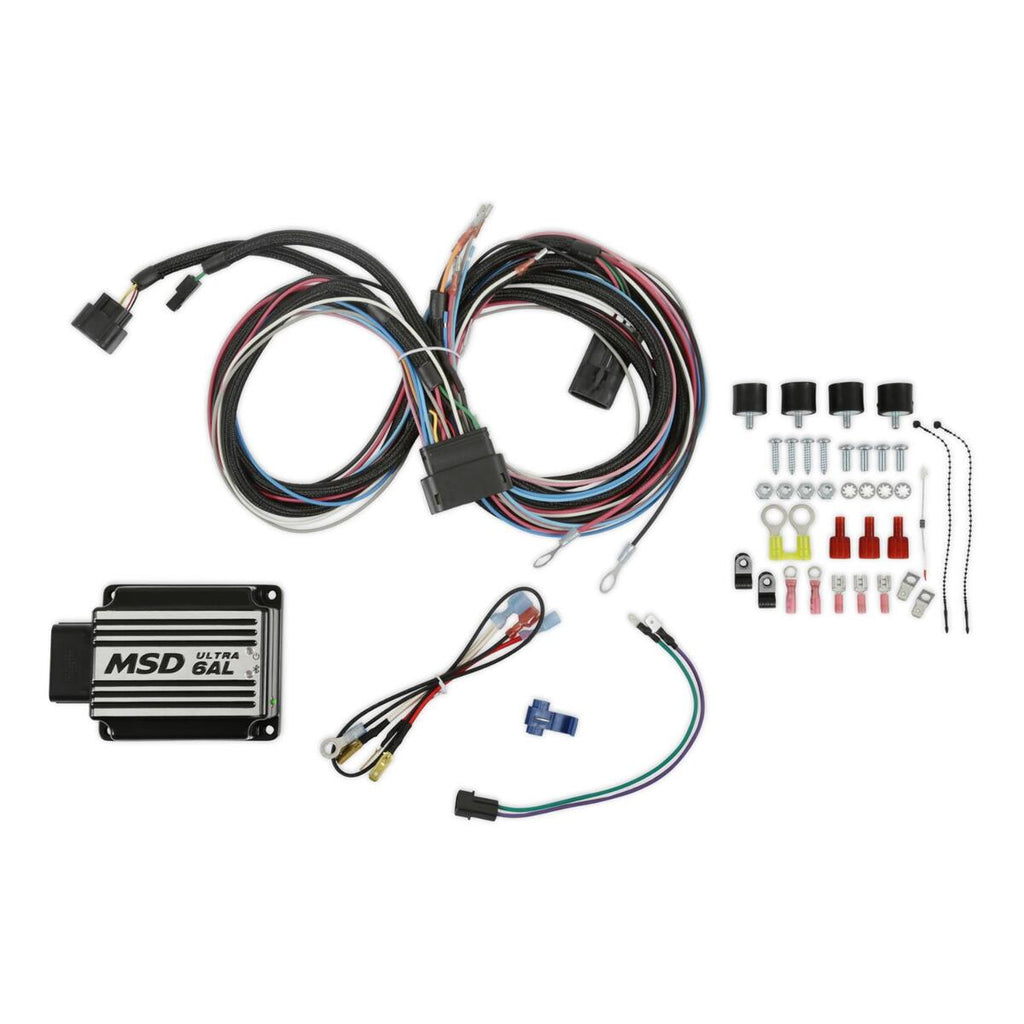

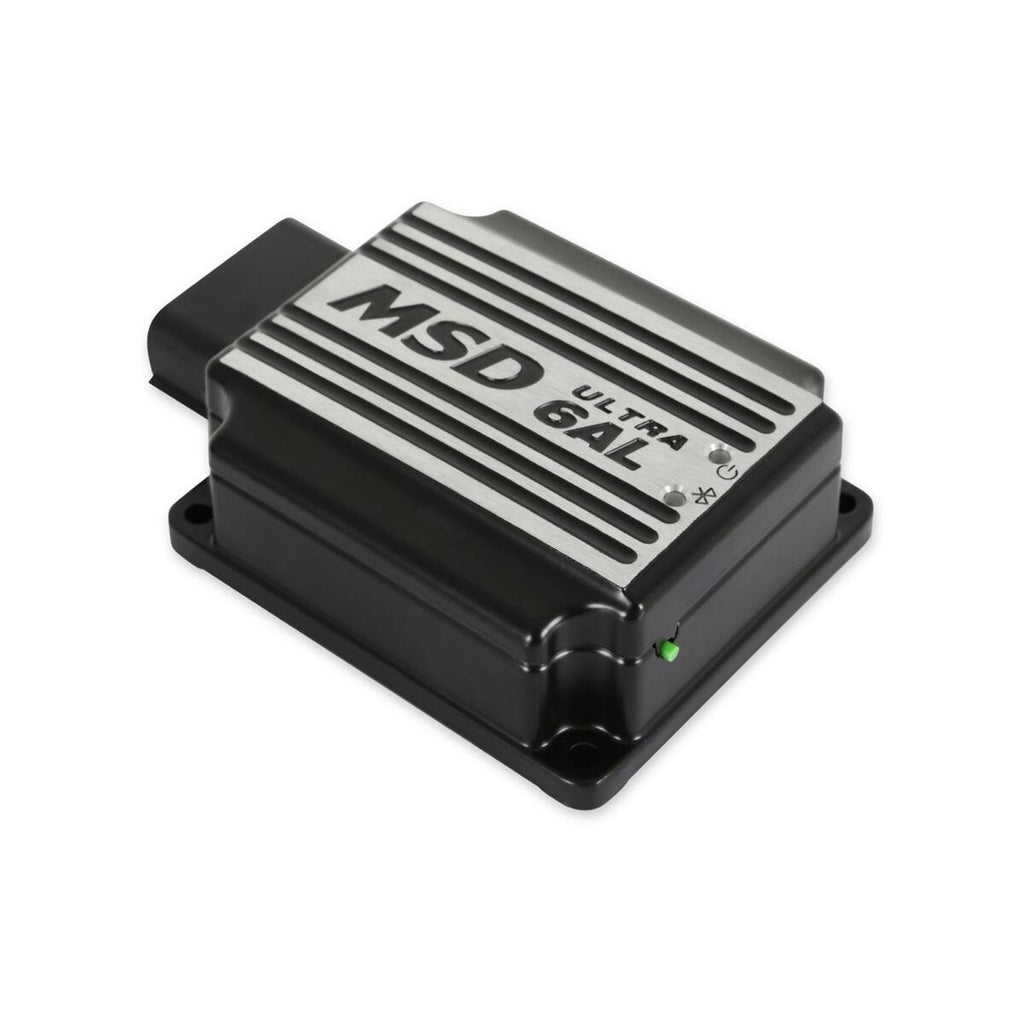

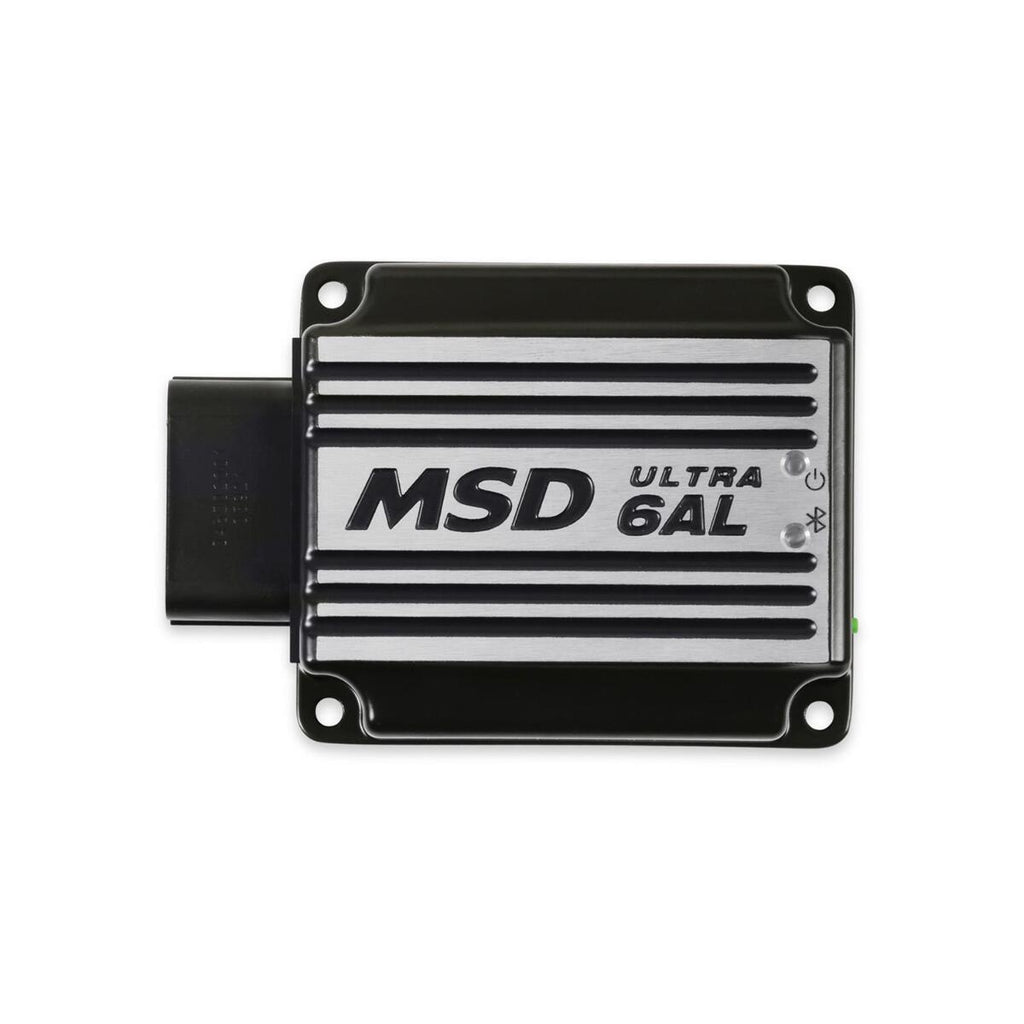

MSD 64233 Ultra 6AL Ignition Control, with Rev Limiter - Compact, Lightweight


Price:
Sale price$296.95
Stock:
In stock

Description

Features:

  • The Ultra 6AL greatly expands on the capabilities of the 6-series line and is wirelessly controlled from a smart phone via the ?ǣMSD Ultra 6AL?ǥ app
  • Built-in tri-step RPM rev limit capability - Launch, Burnout, and Step Retard activation
  • Mobile app available settings: Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value
  • Programmable Step Retard (up to 30 degrees): On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation
  • Programmable Start Retard: 0, 10, 20 degrees
  • Alerts and monitors available
  • High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation
  • High conversion efficiency ensures minimal heat generation and maximum spark energy output with less current draw from the battery - (Highly efficient Ignition, minimum heat and max spark energy with less current draw)
  • High RPM operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253
  • Powerful capacitive discharge of multiple sparks improves performance - quickens throttle response & improves starting
  • Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline RPM
  • Increase spark series duration lasts for 18 of crankshaft rotation
  • Operates on most 7 to 28 volt electrical systems
  • Connects to points, magnetic pickups, and Hall/Crank Input distributors on 4,6, and 8-cylinder engines
  • MSD CAN communication for easy connectivity to MSDView using a CAN MSD Hub and Power Grid USB or CAN-USB Bridge 89982 product
  • Fully protected against an open coil, shorted coil & open load
  • Tach Output
