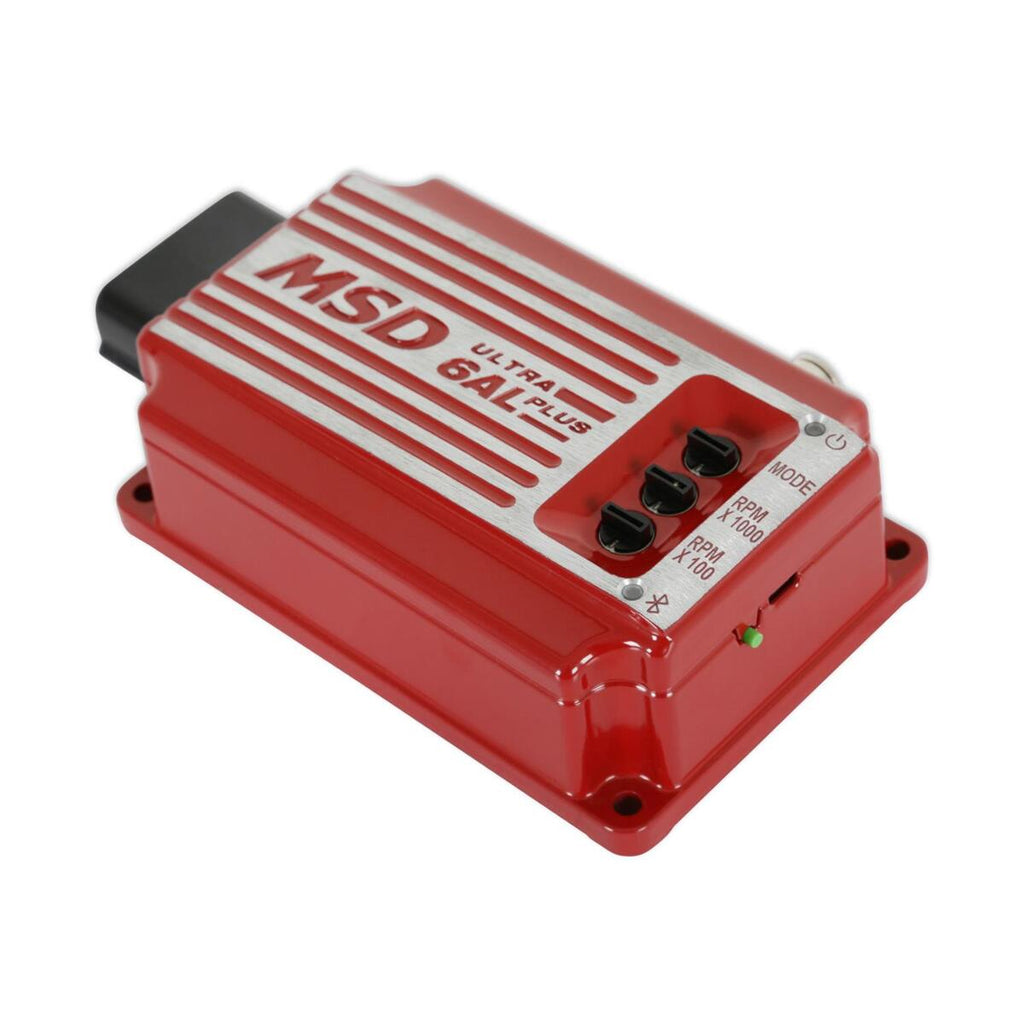

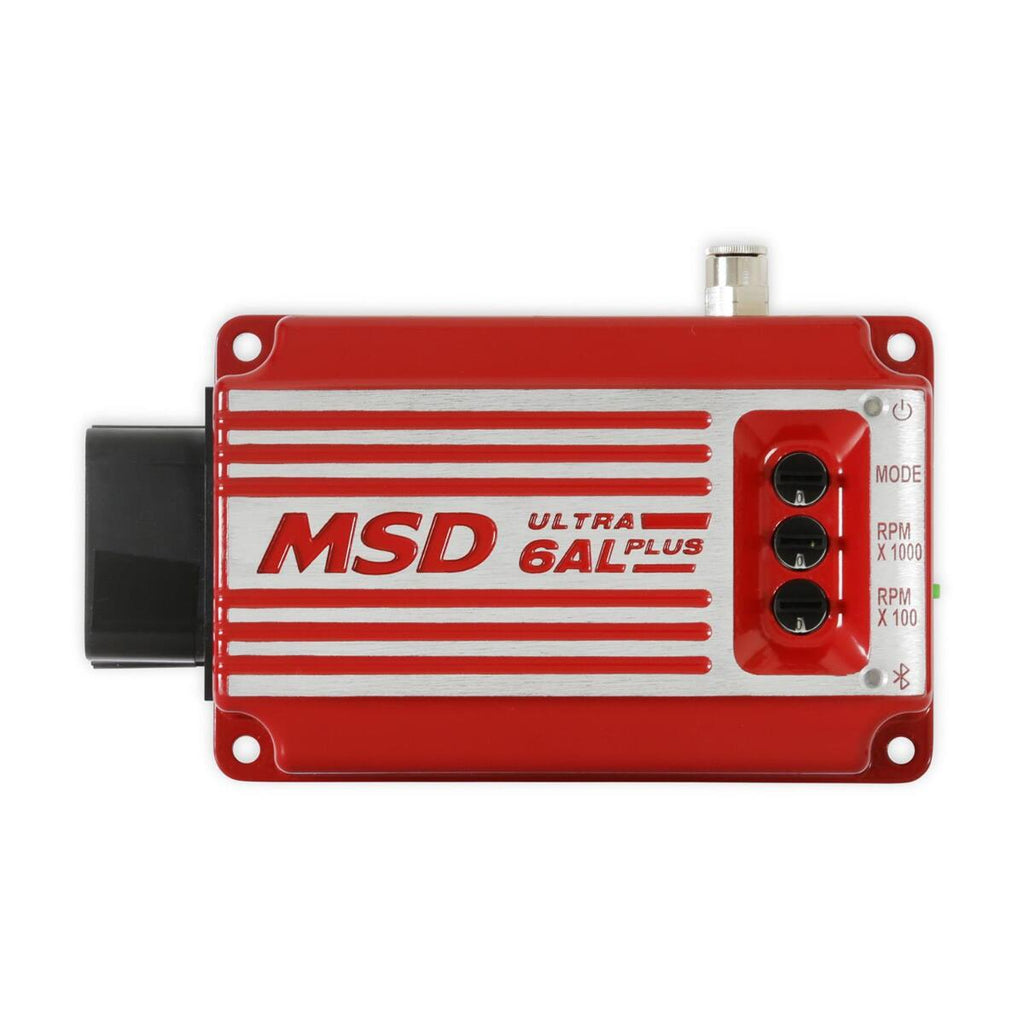

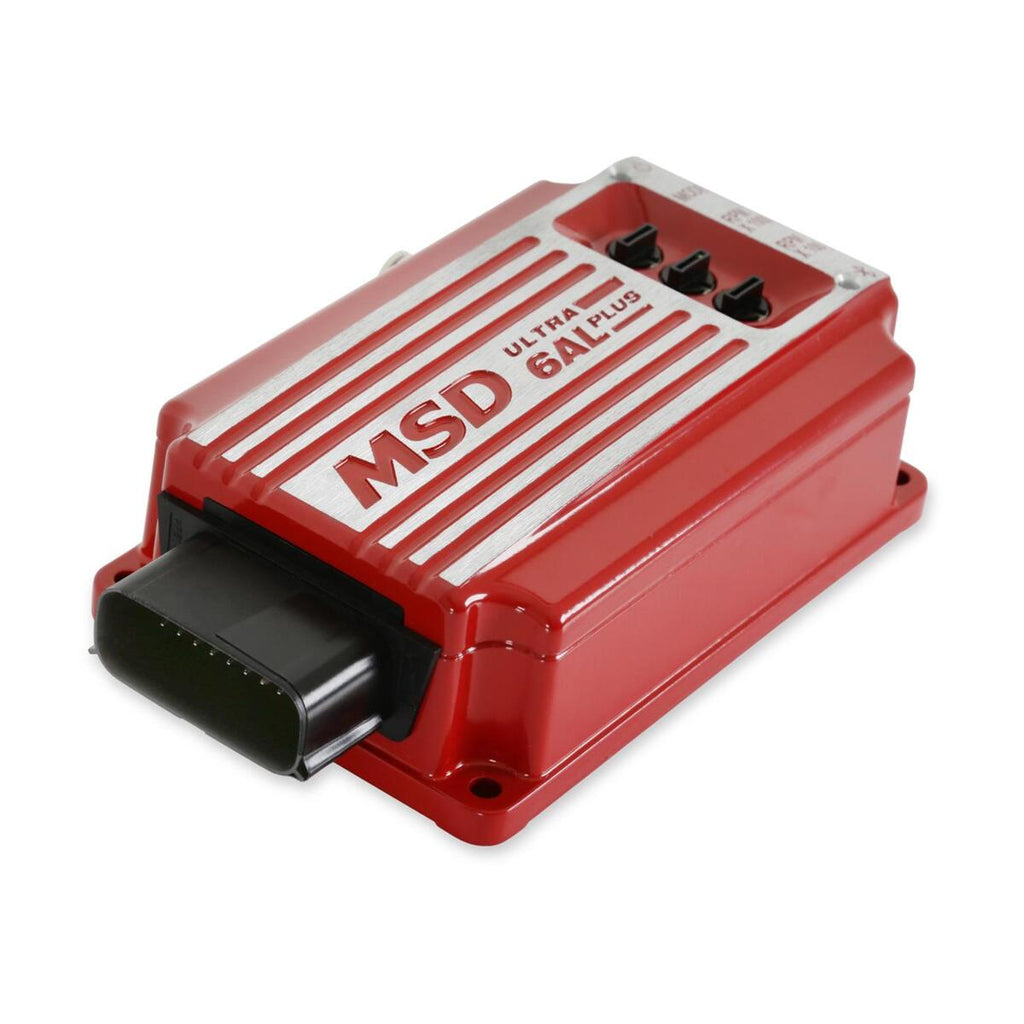

MSD 6523 Ultra 6AL Plus Ignition Control, with 3 Rev Limiters
Description
Features:
- Boost dependent timing control up to 400 kPA (58 PSI / 4 BAR internal sensor) - the ultimate ignition box for moderately boosted vehicles utilizing a blow-through or draw-through carburetor

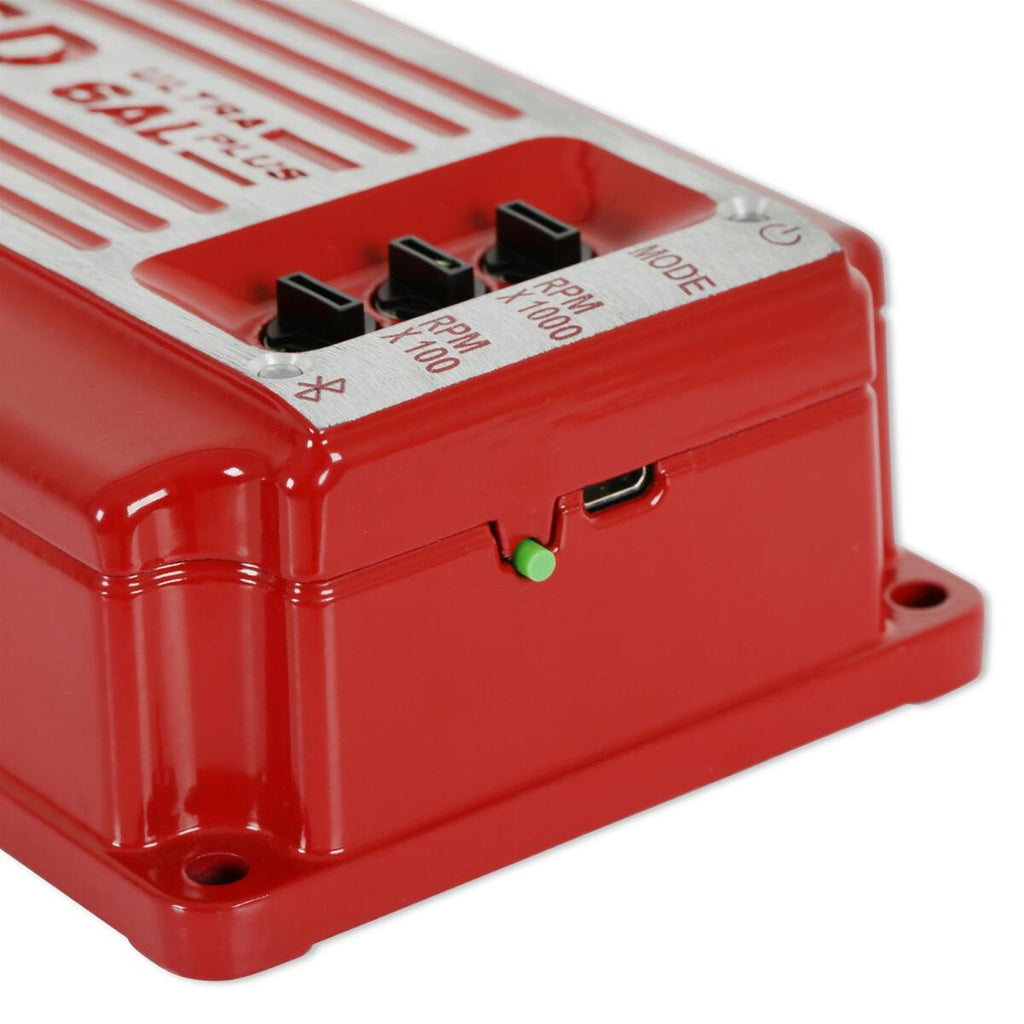

- Program through the “MSD Ultra 6AL” app or MSDView software via the integrated USB port
- MSD CAN communication for easy connectivity to MSDView using a CAN MSD Hub and Power Grid USB or CAN-USB Bridge 89982 product
- Programmable timing curves in 2D Plots or 3D tables (RPM vs Timing vs MAP Pressure) - You can plot the 3D graph and edit a table 20x20 either from Mobile app (Phone) or from MSDView (laptop)
- Programmable Launch Timing (Seconds vs degrees after launch wire activation)
- Capable to program cylinder selection and start retard without a computer or app for old school racers (like 6425 or 6428 box)

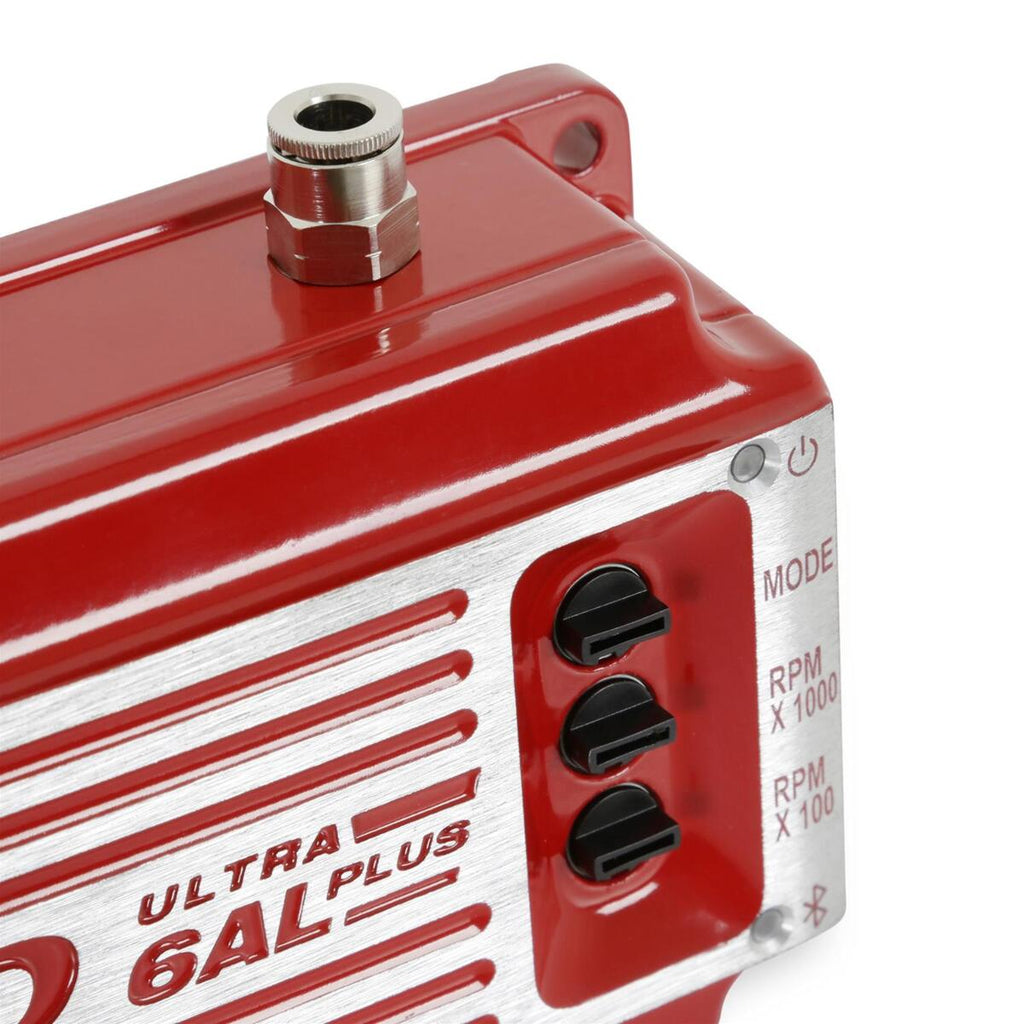

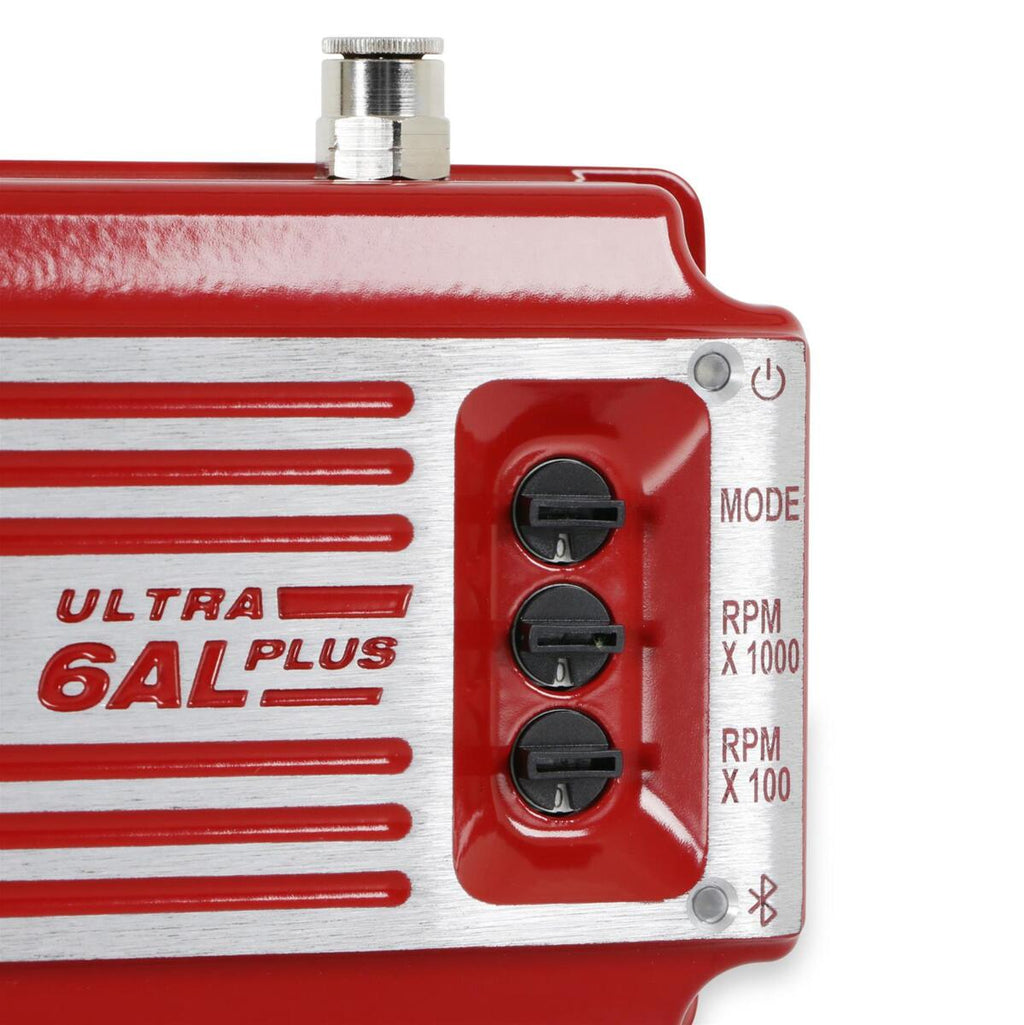

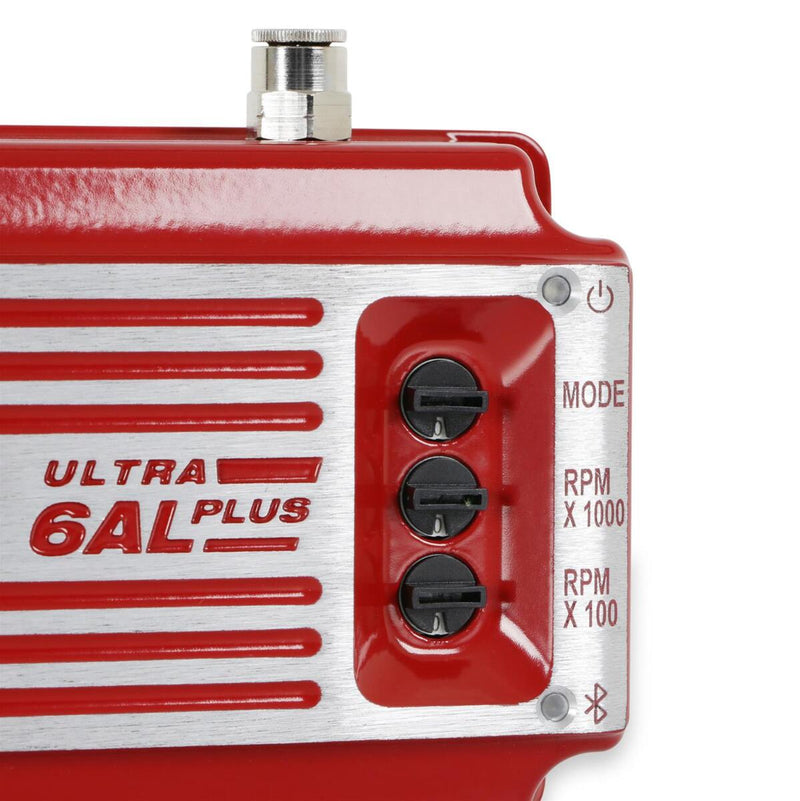

- Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value
- Programmable Step Retard: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation
- Programmable Start Retard through rotary switches: 0, 10, 20 degrees
- Launch, Burnout, and Step Retard activation inputs available. This ignition box has a built-in tri step RPM rev limit
- Alerts and monitors available
- High conversion efficiency ensures minimal heat generation and maximum spark energy output with less current draw from the battery. - (Highly efficient Ignition, minimum heat and max spark energy with less current draw)
- High RPM operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253
- Powerful capacitive discharge of multiple sparks improves performance
- Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline RPM
- Increase spark series duration lasts for 18 of crankshaft rotation

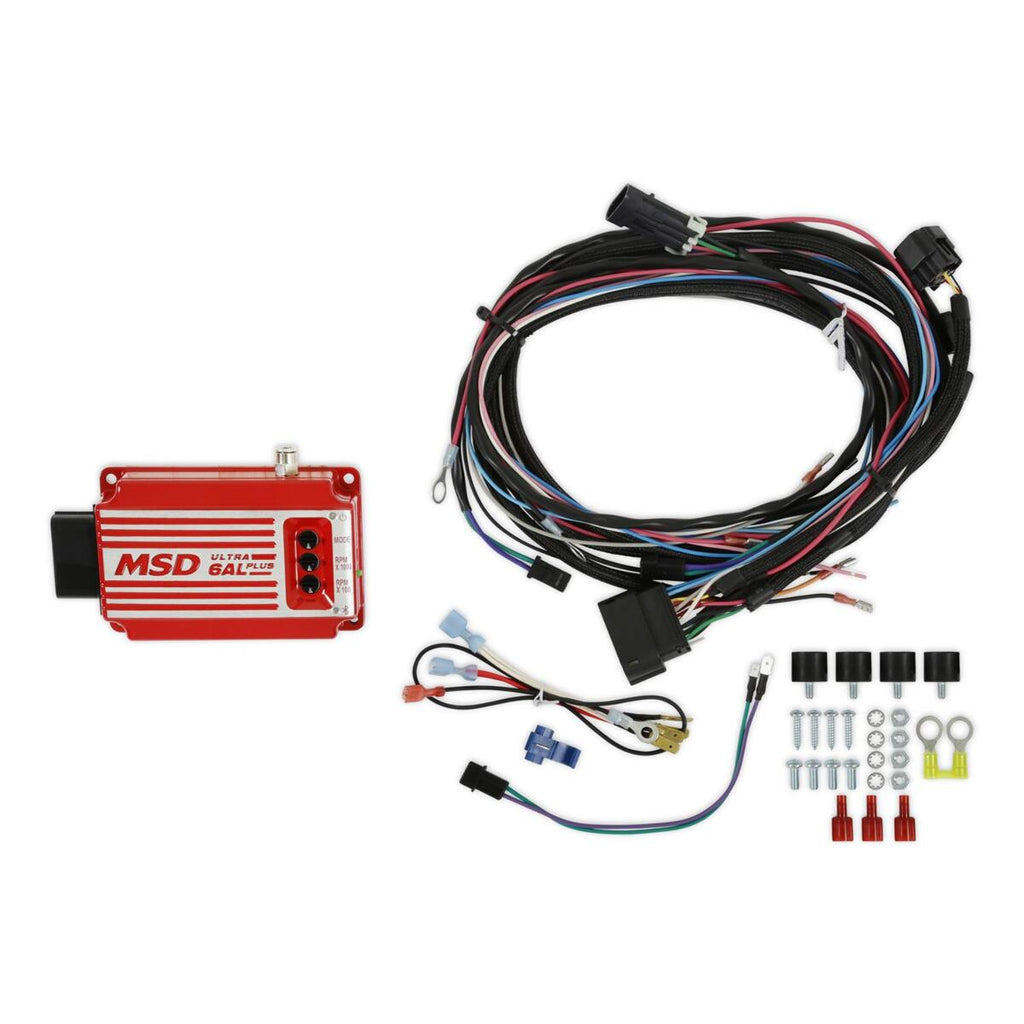

- Easily installs on 4, 6, 8-cylinder engines with distributors
- Operates on most 7 to 28 volt electrical systems
- Fully protected against an open coil, shorted coil & open load
- Quickens throttle response & improves starting
- Tach Output
- Connects to points, magnetic pickups, and Hall/Crank Input distributors on 4,6, and 8-cylinder engines
- High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation
- Maximum programmable retard of 35 degree
