Description

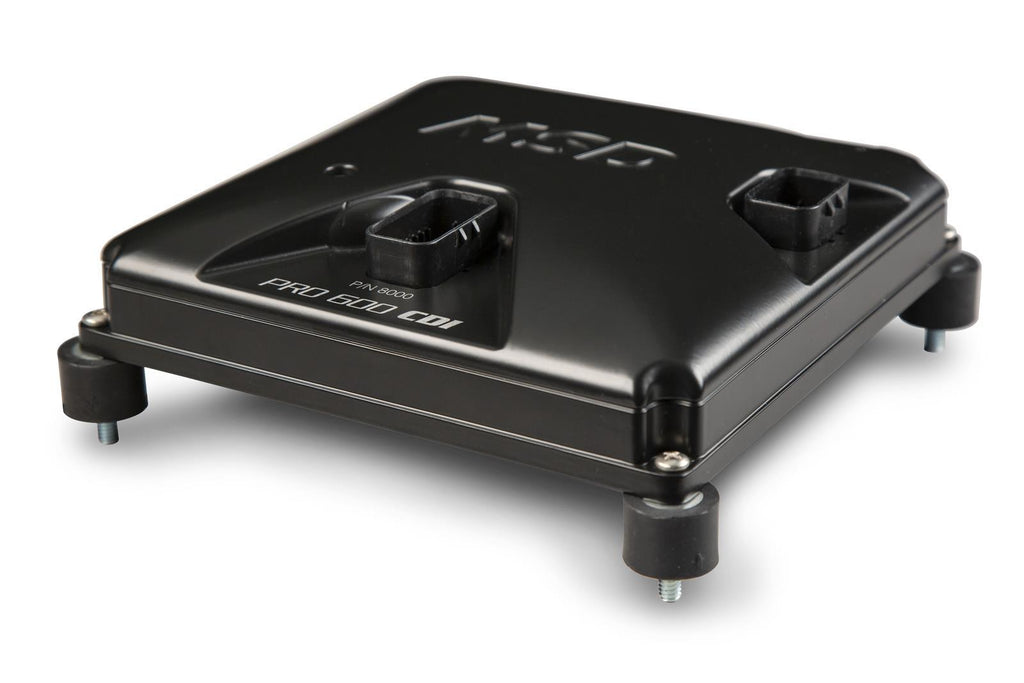

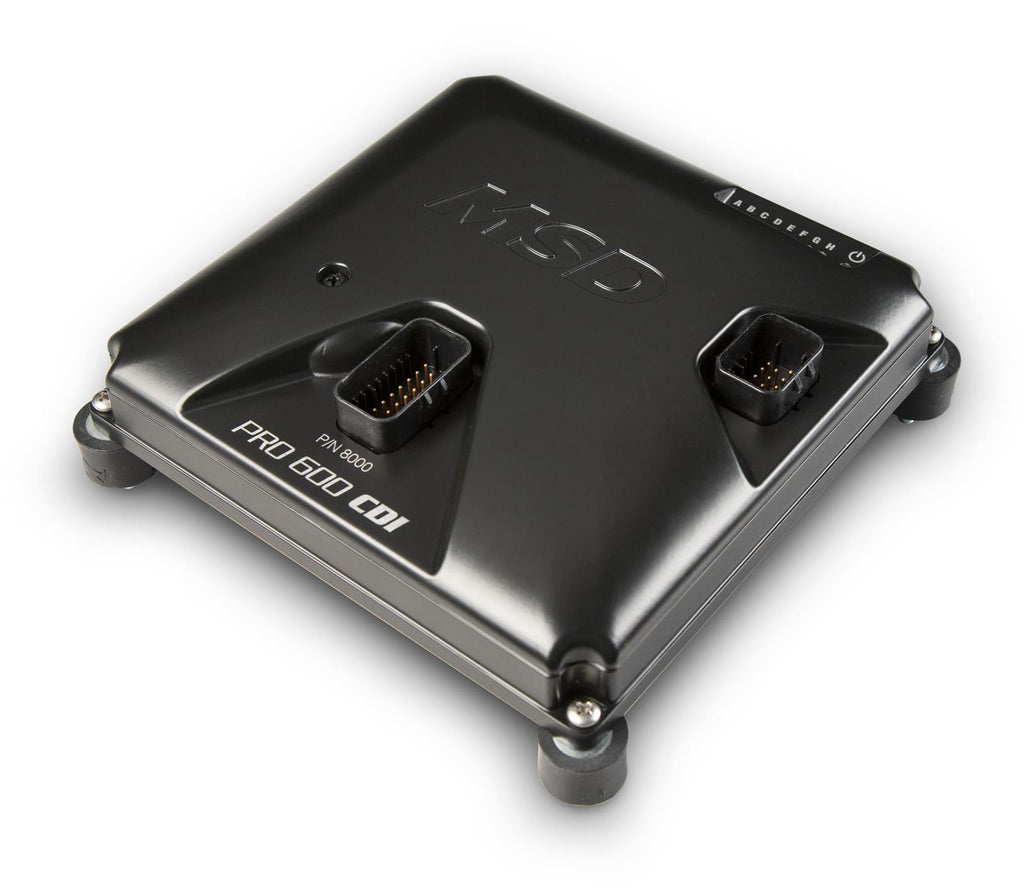

8-channel capacitive discharge ignition designed for high cylinder pressure, high horsepower engines running coil-near-plug ignition.
Features:
- Eight outputs of up to 680 mJ of energy

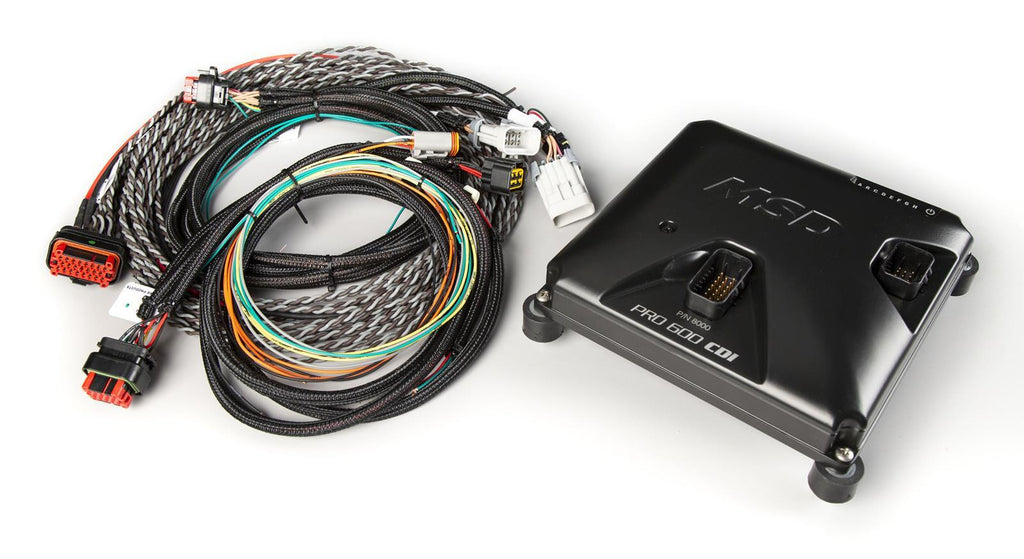

- All necessary wiring harnesses included
- Continuous 600 mJ operation without risk of failure from overheating
- High-efficiency Alternating Current (AC) power delivery means less voltage draw from your battery or charging system
- Over 50 Kilovolts output voltage when used with MSD suggested coils
- Spark duration of greater than 300 microseconds
- 6 Volts minimum required for starting and running
- 12 Volts minimum required for 600 mJ opereation
- Maximum Operating Voltage 22V
- Direct Plugin to Holley EFI systems
- Compatible with most EFI systems, including 5V or 12V drivers

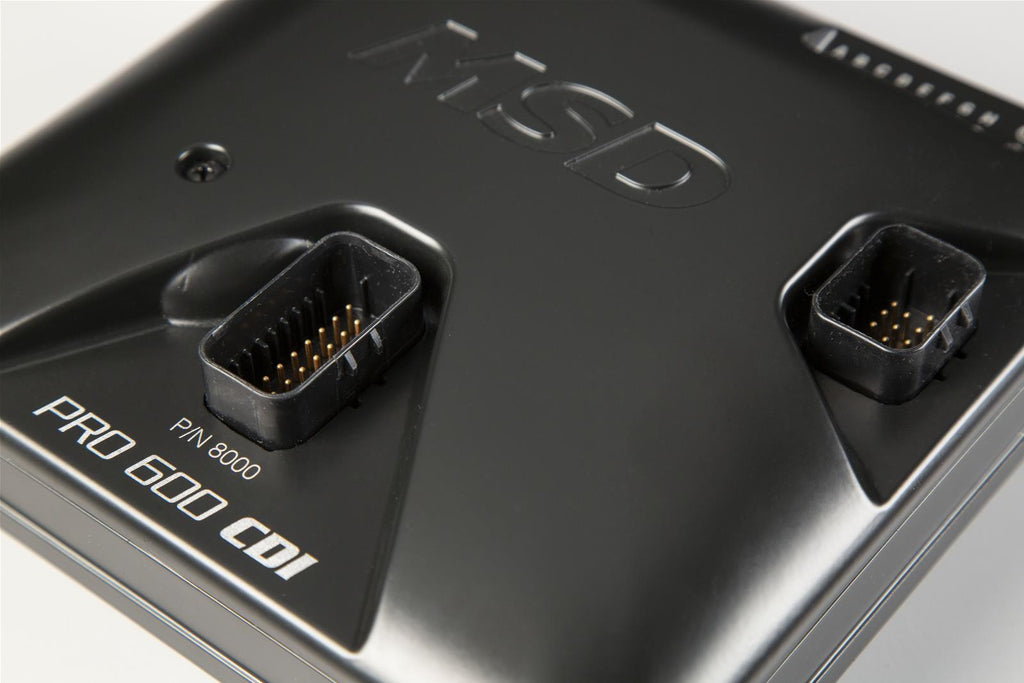

- Plugin interface with MSD Power-Grid, Davis Profiler and OEM LS-style coil harness
- Reverse Battery Protection
- Protection against shorted or open coils, and over temperature

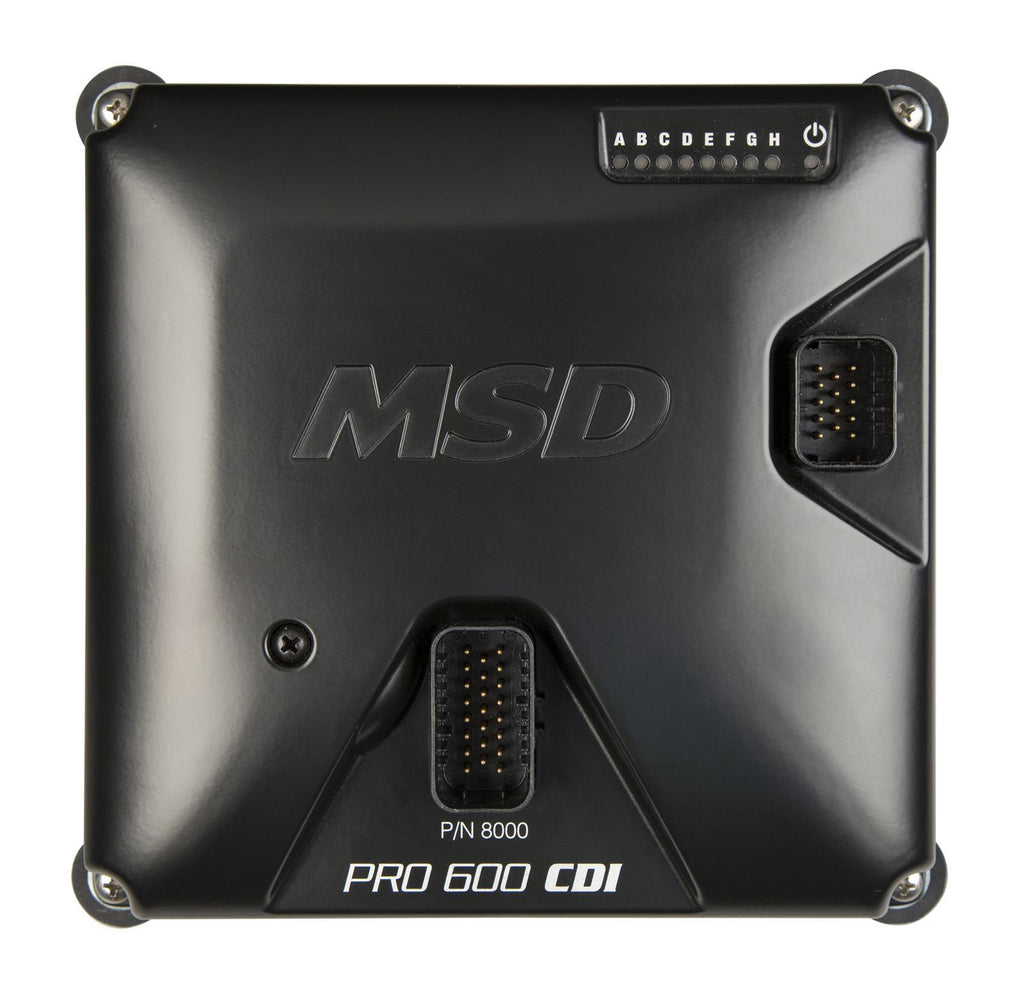

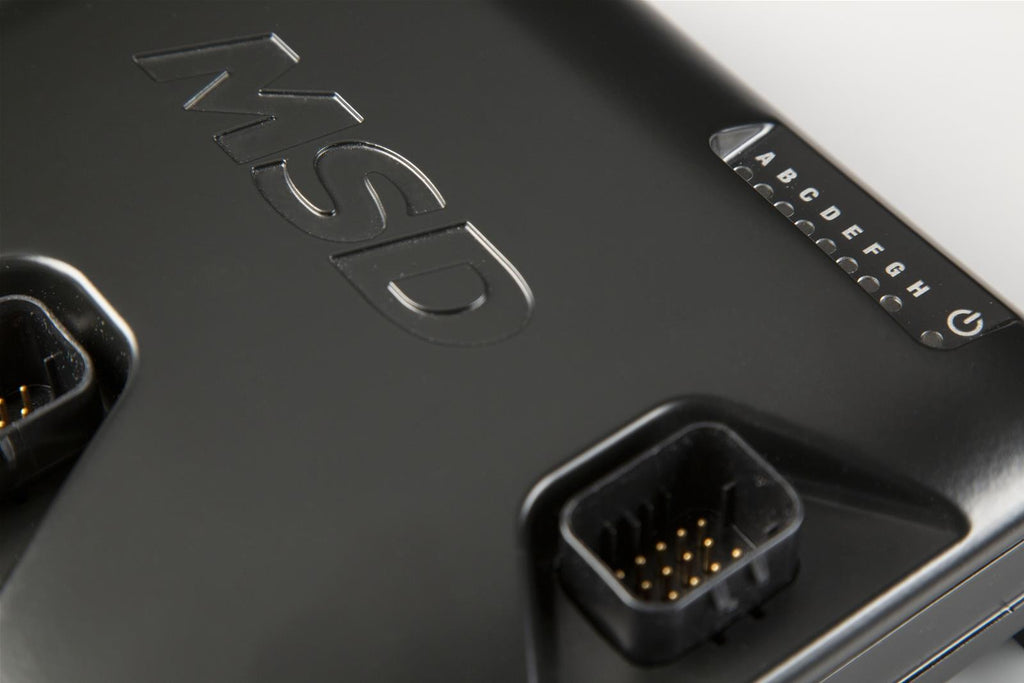

- Diagnostic LEDs help troubleshoot issues should they arise
- On the fly Power Output selection wire, selectable between low power and high power operation
- Fits most coil-per-plug engines up to eight cylinders (Including four and six cylinders)
- Additional CAN based features when used with Holley EFI - See addendum below
- Approved for NHRA Pro Mod Class
