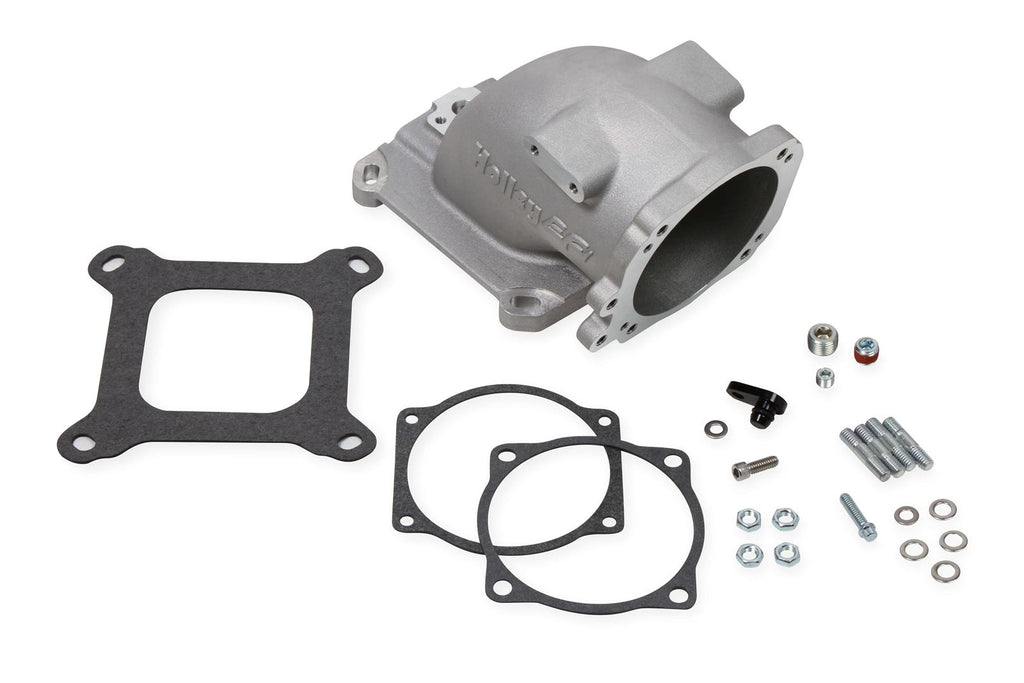

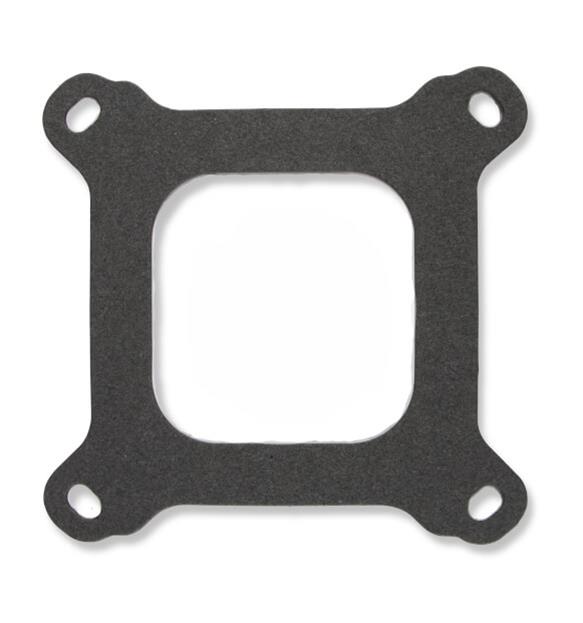

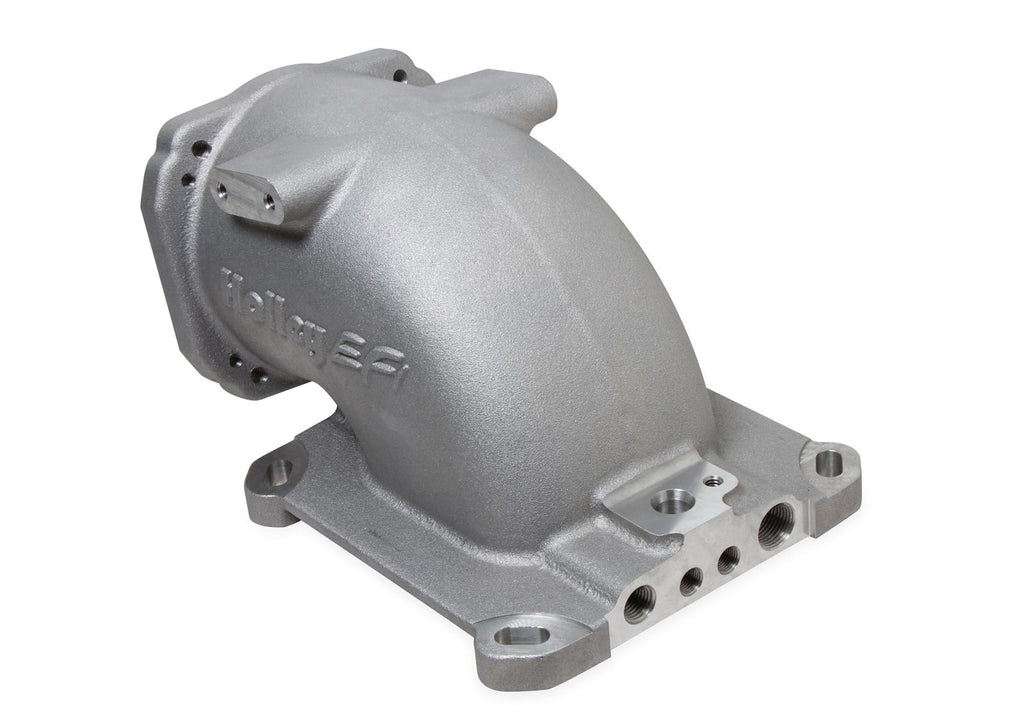

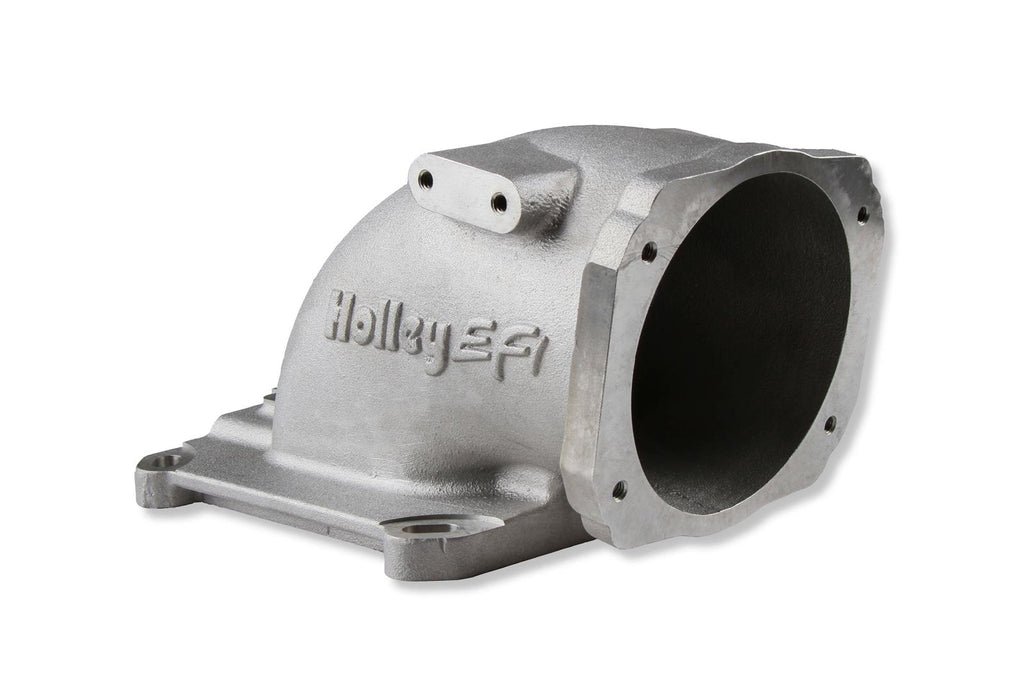

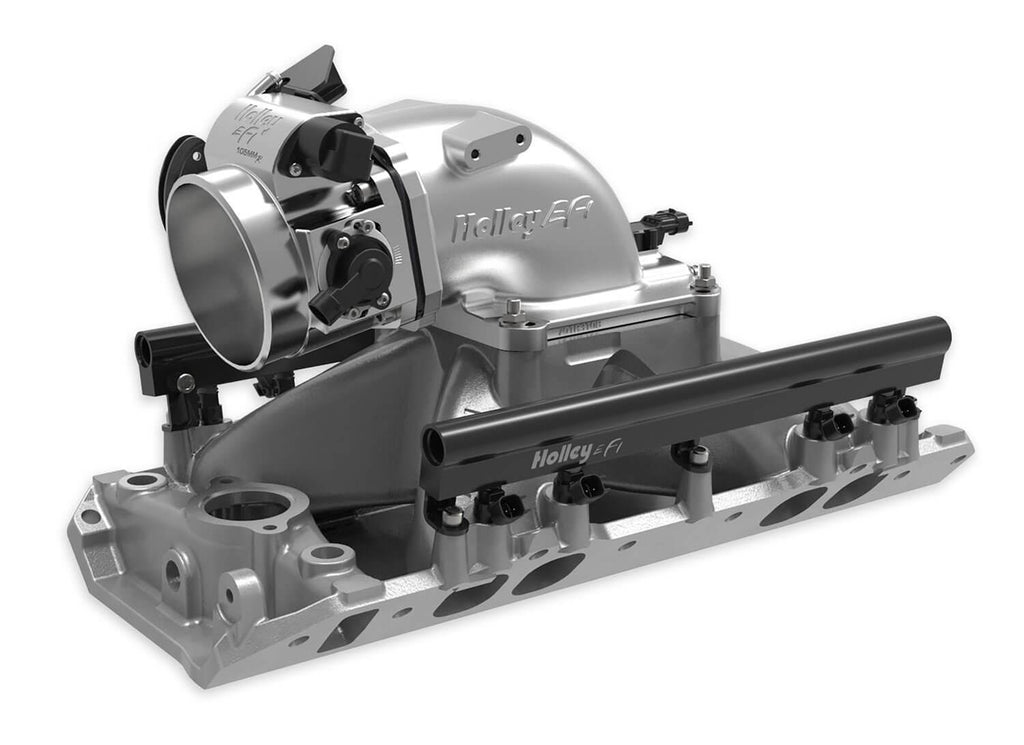

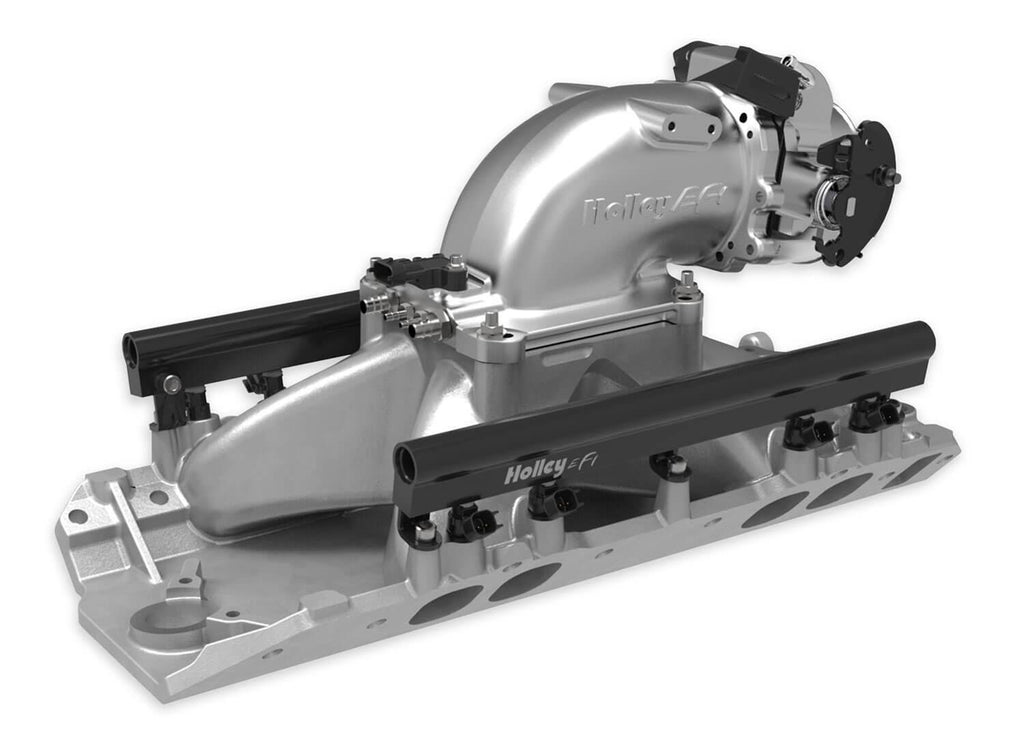

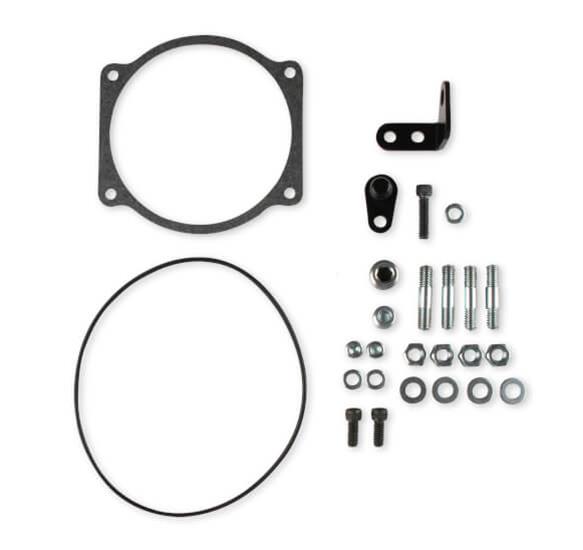

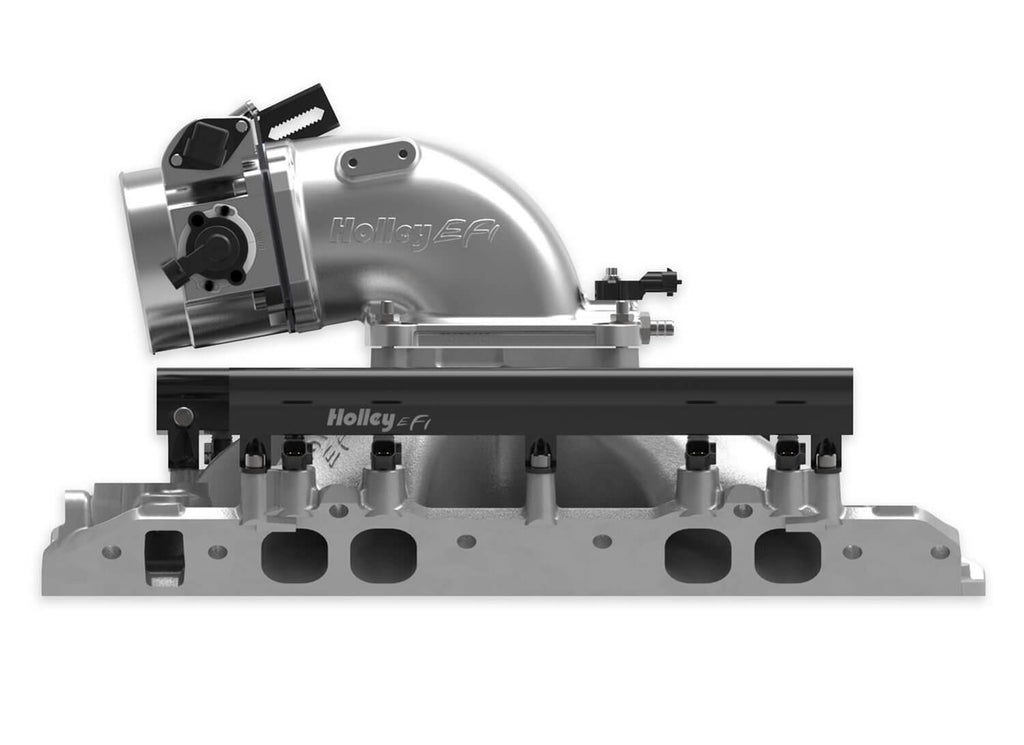

This cast EFI intake elbow allows the use of GM LS throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes & dual throttle cable mounting bracket bosses allow the elbow & throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100° throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets & hardware.
- Fits GM LS Throttle Bodies
- 105mm Throttle Body Opening - 100° Mounting Angle
- Fits Intakes w/ 4150 Flange
- Slotted Mounting Holes Allow Forward, Sideways or Rearward Throttle Body Mounting

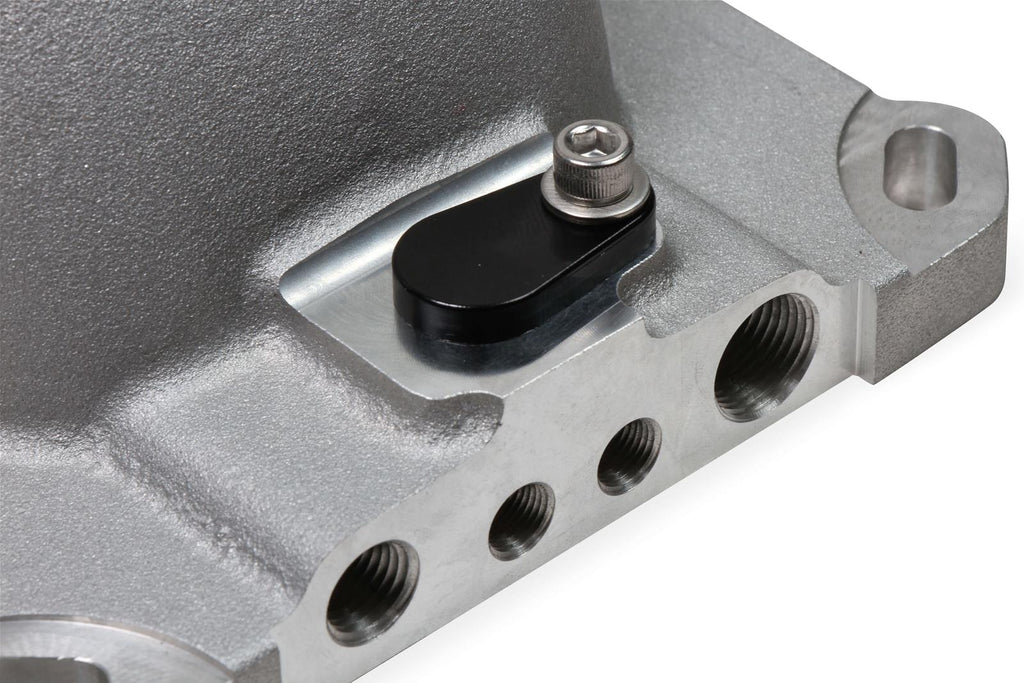

- LS3 Style MAP Sensor Mounting

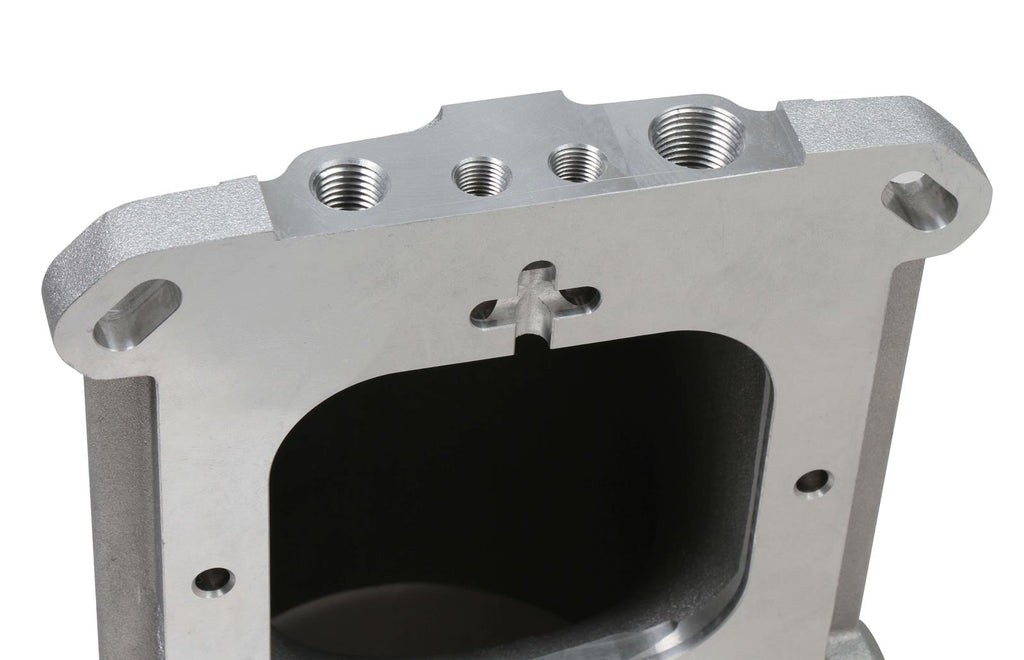

- (4) Vacuum Ports – (1) Each 1/4” NPT & 3/8” NPT & (2) 1/8” NPT w/ Indirect Baffled Signal
- (2) Throttle Linkage Mounting Bosses
- Sand Cast w/ Satin Finish
- Overall Height 5.12”
