Holley EFI 300-117 Hi-Ram Intake GM LS3/L92 - Natural Finish


Price:
Sale price$988.16
Stock:
In stock

Description

EFI Hi-Ram Intake for 1 x 105mm GM LS3/L92 Throttle Body - Longitudinal Mount Plenum Top

Features:

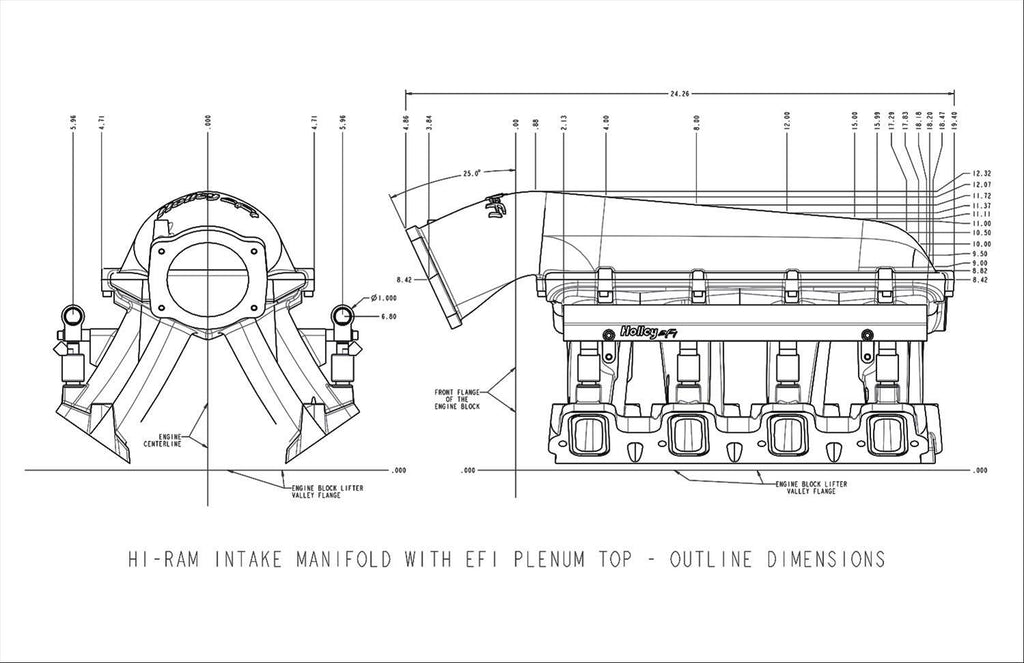

  • Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
  • Total Height with 92/105mm EFI Plenum Top – 12.32” to the lifter valley cover flange on engine block.
  • Port Size – 2.49” Height x 1.21” Wide
  • Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height – 8.42” (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical)
  • Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²
  • Manifold has provisions for (1) 3/8 NPT and (2) 1/8 NPT fittings
