Description
The Pontiac V8 engines have varying mount styles, depending on the engine. The Motofeet engine stand is designed to accommodate these variations with a single part number.
Engine Applications
(engine size and years available):
Size .... Year(s)
265 ..... 1980-1981
287 ..... 1955
301 ..... 1977-1981
326 .....1963-1967
347 ..... 1957
350 ..... 1968-1977
366 ..... 1970
370 ..... 1958
389 ..... 1959-1966
400 ..... 1967-1979
421 ..... 1961-1966
428 ..... 1967-1969
455 ..... 1970-1976

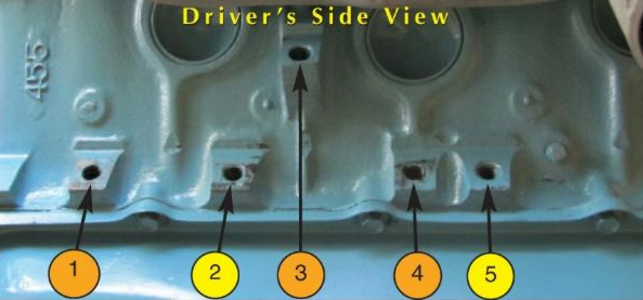

See attached image that shows the available bolt patterns on Pontiac V8 engines. The Motofeet 1500 stand utilizes the #1 and #4 designated mounting holes
*** These stands WILL NOT fit for the 2 and 5 holes.
That means that the Motofeet stand for Pontiac ALWAYS mounts to the #1 and #4 bolt holes shown in the image below, no matter what engine you have.

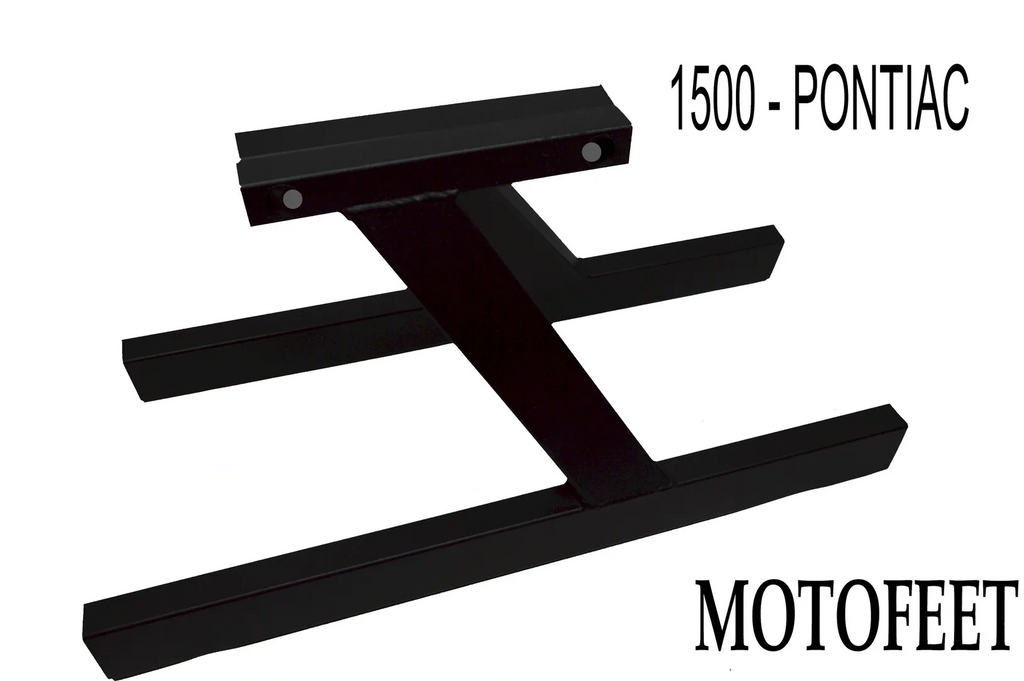

- Sturdy Boxed Steel Alloy Construction
- Mount plate is thick 1/4" steel with Pre-Drilled Holes to match your engine
- Attractive and Durable Black Powder Coating
- Easy to store when not in use
- Bolts right to your engine mount pads on your engine block - attaches in minutes!
- Strong enough to hold your complete engine AND transmission
- Affordably Priced
- Made in the USA
NOTES:
- Every Motofeet stand features welded-in (3/8"-16) threaded inserts to allow easy mounting of optional casters.
- If using the stand to transport an engine, it is recommended to remove the casters and securely mount or strap the stand legs and engine in place to prevent movement.
